- Aluminum die–casting chassis, fanless design 、

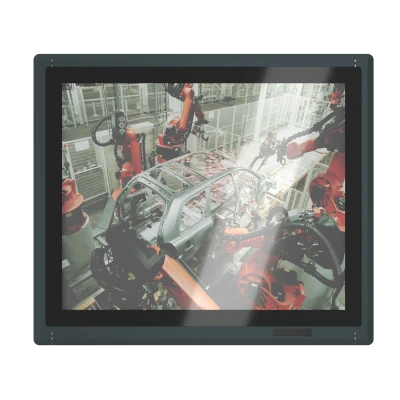

- 19.0” LED TFT LCD, capacitive/resistive touch
- Intel® Skylake–U/Kabylake-U CPU
- 1*DDR4 2133 SODIMM, Max 16GB
- 1*Mini PCIe (PCIe+USB),Opt.1*32-bit PCI/PCIe X1
- 4*COM, 2*LAN, 4*USB3.0, 1*USB2.0，1*Line out
- 2.5”HDD Bay, 1*mSATA
- ATX button&remote button
- DC 9~36V power input
|
System |
CPU |
Gen.6th Intel® Skylake-U Celeron 3855U; Core I3-6100U; I5-6200U; I7-6500U CPU
Gen. 7th Intel® Kabylake-U Celeron 3865U; Core I3-7100U; I5-7200U; I7-7500U CPU |
| Chipset | Intel® SOC | |
| System Wemory | 1*DDR4 2133 MHz SODIMM, Max 16GB | |
| BIOS | Insyde SPI 64Mbit flash | |
| Storage | 1*2.5” SATA HDD bay, support SATA3.0 6Gbps HDD/SSD, 1*mSATA | |
| Display | 19.0” LED backlight TFT LCD and HDWI(4K resolution) , dual display, Intel® HD graphics 510/520 | |
| Touch | 5 wire resistive touch optional projected capacitive touch, USB control | |
| Expansion | 1*Mini PCIe(PCIe&USB signal),Opt.1*32-bit PCI or 1*PCIe X1 | |
| Audio | Realtek ALC662VD controller, Support 5.1 channel, 2*3W Speaker | |

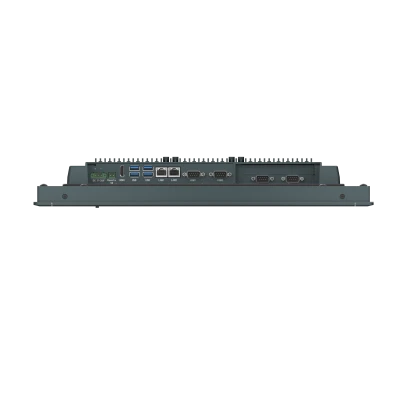

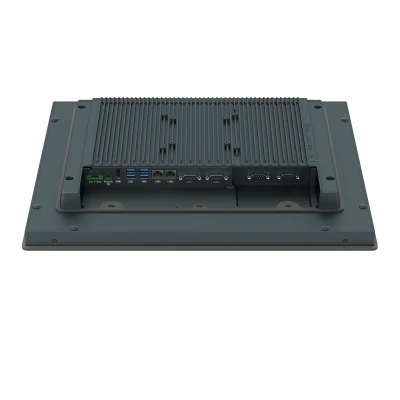

| Real I/O | 4*COM:2*RS232, 2*RS232/422/485, DB9(when using PCI/PCIe，there are only 2*COM) 1*HDMI,1*Line out
4*USB3.0 Type A 2*RJ45 |
|
| Front I/O | 1*USB2.0 Type A | |
| LAN | 2*Intel I210AT PCIe Gig. Ethernet, 10/100/1000Mbps | |
| Control SW/LED | 1*Cmos,1*AT/ATX，Power button, 2–pin connecter with power switch signal,HDD LED | |
| Power Supply | DC to DC: 9~36V input, consumption: TDP 12V/4.44A(Intel® I5–6200U CPU, 4GB DDR4) | |
| OS | Windows 7, Windows 8.1,Windows 10,Linux | |
|
Mechanical & Environmental |

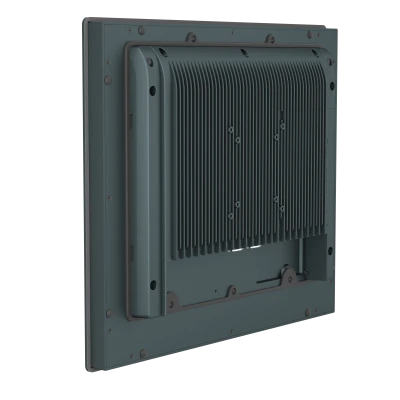

Construction | Aluminum die–casting front bezel , fin–shaped radiator shell |
| Operating Temperature | 0~50℃ –HDD( –10~55℃ –SSD), with airflow | |
| Storage Temperature | –20~60℃ | |
| Storage Humidty | 10~95%@40 , non–condensing | |
| Shock | 10g peak acceleration(duration 11ms), in operating with HDD | |
| Vibration | 1g 5~500Hz, in operating with HDD | |
| Mounting | Panel mounting, VESA 100*100 and 75*75mm, Rack mounting | |
| Dimension | (W*H*D):453.5*388.5*64.1mm; mounting cut out(W*H): 445.0*380.0mm | |
| Net Weight | 6.9kg | |
| EMC | CE,FCC Class A |
|
LCD |
Type | 19’TFT LED | |
| Resolution | 1280*1024 | ||
| Color | 16.7M | ||
| Pixel Pitch(mm) | 0.294*0.294(mm) | ||
| Brightness(cd/m2) | 470 | ||
| Viewing Angle | 85°(left), 85°(right), 85°(up),85°(down) | ||
| Operating Temperature | -15~65℃ | ||
| Backlight Lifetime | 50000 hours | ||
|
Touch |
Type | 5 wire resistive touch | Projected capacitive touch |
| Resolution | gapless | gapless | |
| Light Transmittance | 83% | 90% | |
| Inerface | USB | USB | |
| Comsuption | +5V @200mA | +5V @300mA | |
| OS | Windows/Linux | Windows/Linux | |
| Click Lifetime | 35 million times | 3000 million times | |
